SELECT OPTIONS
Taihang 2
$28.00
The Taihang2 is a tunnel structure tent, the best balance of weight and wind resistance. Dual-Pole System Adapts from Lightweight to Storm Mode in Minutes.(OPTION TO BUY)
FEATURES
The Taihang2 is a compact channel tent.
With a reasonable setting on the windward side, it is highly wind resistant.
It weighs only 1.79kg.
The footprint is included in the tent package, no need to buy separately.
The inner tent can be replaced with a Full-season inner.
Water proof level: 5000mm
Structure: 2 Layer Wall
Seams: All seams has been taped
Tie point: 12 stakes, 4 guy-line
Fabric weight: 40g(m²) 1.17oz(yr²)
Zipper&Buckle: YKK, Duraflex
Fabric tear resistance: 12-15N
Coating: Silicone outside / PU inside
SPECS
FLY MATERIALS
15D silicone/PU Ripstop Nylon
INNER MATERIALS
15D Nylon(4-season) 20D Nylon Mesh(3-season)
FLOOR MATERIALS
20D Nylon with PU coating waterproof 6000mm
TENT WEIGHT(Fly+Inner+Poles)
1680g / 3.7lb (inner tent:488g)
MIN TRAIL WEIGHT(Fly+Inner+Poles+Stakes)
1790g / 3.94lb
FOOTPRINT WEIGHT
170g/6oz
FOOTPRINT MATERIALS
68D silicone/PU Polyester
INNER TENT DIMENSION
220*120*100cm / 86.6″(L)*47.2″(W)*39.3″(H)
CAPACITY
1-2 Person
PACKED DIMENSION
50cm*13cm / 19.7″*5″
DIMENSION
PITCHING INSTRUCTION
STEP 1. Lay the tent flat on the ground. If a footprint is used, lay it out first and temporarily secure it with two pegs to prevent it from being blown away by the wind, then place the tent on top.

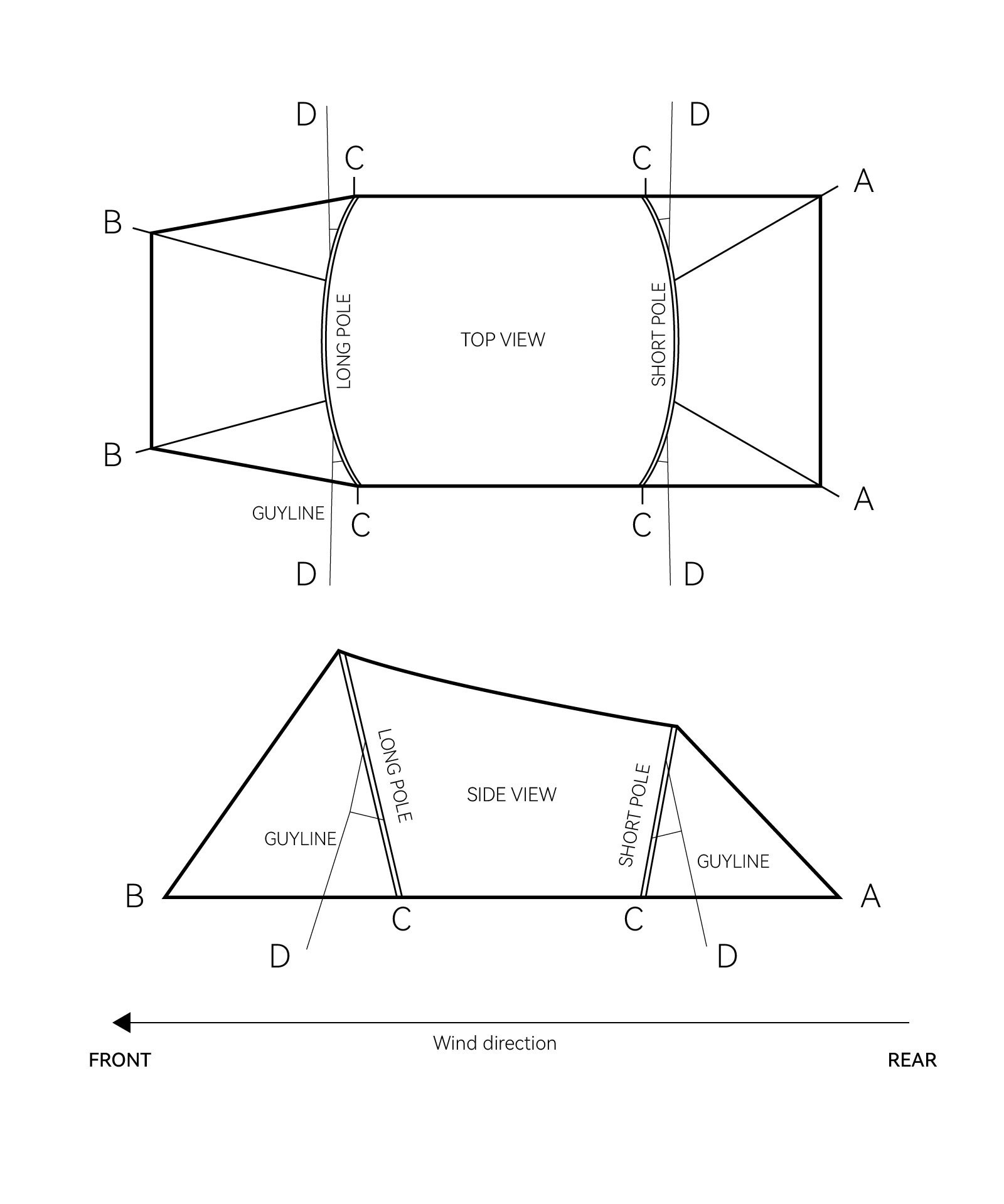

Once the tent is laid out flat, secure the two peg points [A] as shown in the diagram. Before proceeding to the next step, ensure these pegs are firmly fixed to prevent the tent from being blown away.
The rear of the tent should face into the wind.
STEP 2. Insert the poles into the outer tent pole sleeves (made from black UHMWPE Grid Nylon with a white grid pattern). The [SHORT POLE] is fitted at the rear, and the [LONG POLE] at the front.
STEP 3. Pull up the front pegging loop at point [B] and tension the tent until it stands upright. Secure point [B] with a peg.
STEP 4. Secure point [C] with a peg and adjust the peg position to fully tension the tent.
Attach the [GUY LINEs] and secure point [D] with pegs.
OPTION TO BUY
Extra set of tent poles and double pole clips.
The tent can be used with two poles in one pole sleeve to increase the tent’s wind resistance.
PACKING LIST
FLY*1, INNER TENT*1, STAKES*12, TENT POLES*1
FOOTPRINT*1, 2mm GUY-LINE*4, REPAIR KIT*1
